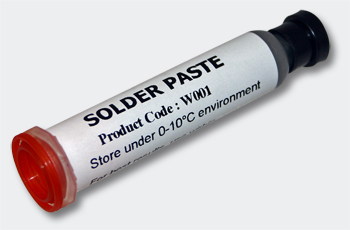

Aoyue - Soldering Paste
 |
Description
|
For lab samples, small series, model-making, or for the professional use of SMD-components with hot air pistons, hot plate, soldering iron etc. They are conveniently stored in syringes and therefore quarantee a clean and accurate usage. The soldering paste can be used directly from the cartridge, no mixing is needed. Especially helpful for very dense placement.
Easy handling with controlled hot air- or electronic soldering iron - apply the dosed soldering paste on the solder joint, place the components, warm the solder joint, the SMD solder joint and the SMD-circuit are ready. The soldering paste can also be applied for SMD-Rework as new contact layer. Soldering paste ist a supply material like solder wire, solder blotting wick, rosin and belongs to every solder joint.
|
Technical specifications
|
| tin |
(Sn)
|
56,0 up to max. 58,0
|
|
silver
|
(Ag)
|
1,3 up to max. 1,7
|
|
stibium
|
(Sb)
|
0,3 up to max. 0,7
|
|
bismuth
|
(Bi)
|
2,5 up to max. 3,5
|
|
copper
|
(Cu)
|
below 0,08
|
|
zinc
|
(Zn)
|
below 0,005
|
|
iron
|
(Fe)
|
below 0,02
|
|
aluminium
|
(Al)
|
below 0,005
|
|
arsenic
|
(As)
|
below 0,03
|
|
cadmium
|
(Cd)
|
below 0,005
|
|
other compounds
|
0,005 up to max. 0,025
|
The product is paste-like, the colour is silver-grey.
Recommended soldering temperature: 280°C
Contents: 50g, enough for ca. 30.000 solder joints
Storage stability: ca. 5-6 months, storage in the refrigerator is recommended (0-10°C).
 |
Delivery content
|
You will receive one Aoyue Soldering Paste (50g).
|
